YX-18650-25T

  • YX-18650-25T
  • YX-18650-25T
  • LFP battery>YX-18650-25T
  • LFP battery>YX-18650-25T
Part number YX-18650-25T
Product classification 84
Manufacturer
Description CE/UN38.3
Encapsulation -
Quantity 1000
RoHS status YES
Share
Price $
IN STOCK: 1000
Total number

Quantity

Price

Total price

Obtain quotation information
Product parameters

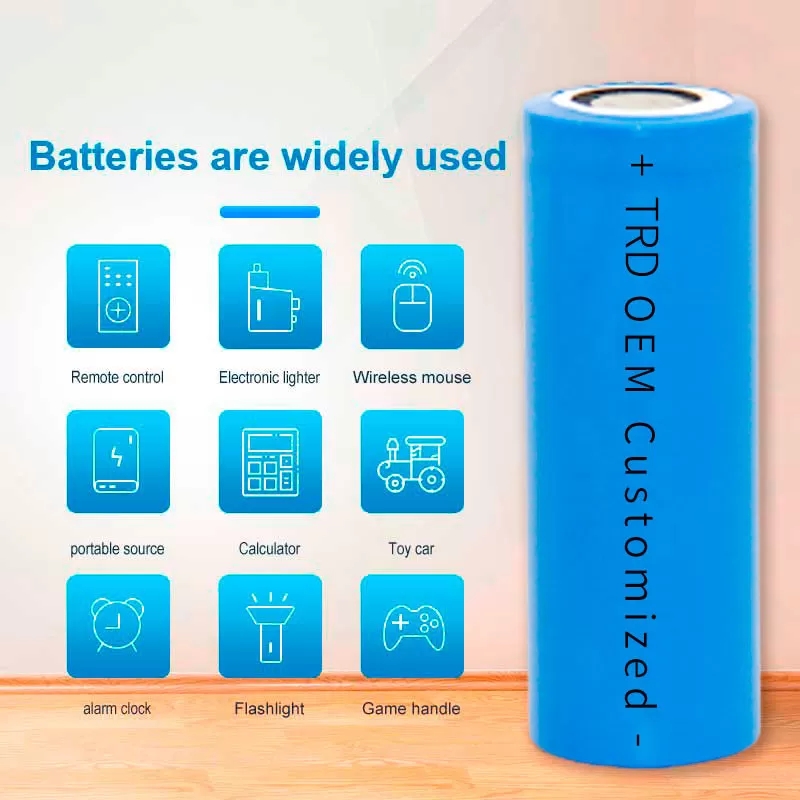

Application: Power Tools, Electric Vehicles, Solar Energy Storage Battery Type: YX18650
Capacity: 2500mAh Certifications: CE, RoHS, UN38.3
Cycle Life: 500 Cycles Safety Features: Overcharge Protection, Short Circuit Protection, Over Discharge Protection
Voltage: 3.7V
High Light:

Flat Top High Discharge Lithium Ion Battery, 3.7V lithium ion cylindrical battery, 2500mah High Discharge Lithium Ion Battery

Applications:
Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys

Energy Storage
♦ Solar-Wind Power System
♦ City Grid

Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment

Features:
* Long service life.
* Low self-discharge.
* Environment friendly.
* Good safety performance.
* Broad operating temperature range.



No. Item Specifications
1 Model No. YX18650-25T
2 Typical Capacity 2500mAh @0.2C Discharge
3 Min capacity 2450mAh @0.2C Discharge
4 Nominal voltage 3.7V
5 Standard Charge CC/CV,0.5C,4.20V
6 Standard Discharge CC,02C,2.5V
7 Cut-off charge Voltage 4.20V±0.05V
8 Cut-off charge Current 100mA (At CVmode)
9 Cut-off discharge Voltage 2.5V
10 Charging Time 3hours(standard charge)
11 Quick Charge Current 4.5A
12 Quick Discharge Current 30A (12C )
13 Max Discharge Current 50A (2s)
14 Initial Impedance ≤18mΩ
15 Weight 46g
16 Operating temperature Charging: 0~50
Discharging:-20~75
17 Storage temperature -20~45
18 Storage Humidity ≤75%RH
19 Standard environmental condition Temperature:25±2
Humidity:45-75%RH
Atmospheric Pressure:86-106KPA

CE/UN38.3
